Zero-Downtime Azure Cloud Migration

/ FinTech / USA / 2021-2024 /

Downtime During Migration: 0
Post-Migration Uptime: 99.99%
Infrastructure Cost Reduction: 40%

Client: Fintech Enterprise
Industry: FinTech
Region: USA
Period: 2021-2024
Engagement: Dedicated Team
Team size: 100 MM

Services used

Summary

The client needed to migrate their entire fintech ecosystem infrastructure from on-premise servers to Azure with zero service interruption. The platform required high availability across the country, enterprise-grade security, and the ability to scale to meet growing transaction volumes - all while maintaining continuity for live financial services.

The Challenge

On-premise infrastructure couldn't scale to meet growing fintech transaction volumes

Migration had to be executed with zero downtime for live financial services

High availability across the country required multi-region redundancy and failover

Financial data security and compliance demanded strict access controls and audit trails

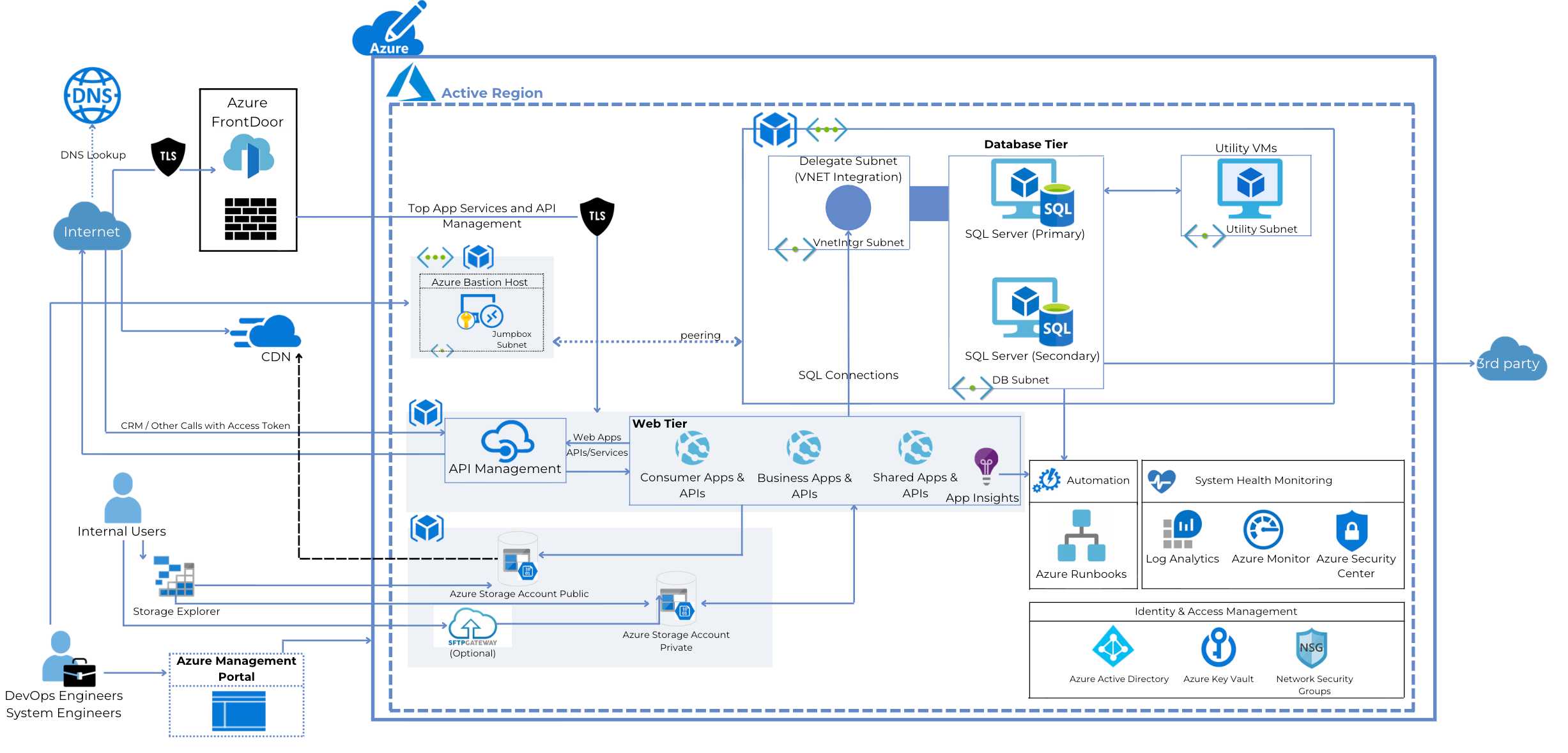

The Solution

01 Global routing with FrontDoor

Azure FrontDoor with CDN handles traffic routing and edge performance, which is what delivers high availability across the country rather than from a single site.

02 Multi-tier workload separation

API Management separates consumer, business and shared application workloads into tiers, so one workload's transaction volume does not degrade the others.

03 Database high availability

SQL Server runs primary-secondary with VNET integration. Failover is built into the data layer, which is where a live financial service can least afford an interruption.

04 Secure remote access

Azure Bastion and a jumpbox provide administrative access without exposing public IPs, removing the most obvious route into a platform holding financial data.

05 Identity and access management

Azure Active Directory, Key Vault and network security groups carry identity, secrets and network controls, which is what the compliance position required of the migrated estate.

06 Observability and compliance

Azure Monitor, Log Analytics and Security Center give full observability and the audit trail that financial data compliance depends on.

07 Automated operations

Azure Runbooks automate routine operations and infrastructure management, so the platform is run by defined procedures rather than by hand after the migration.
